Indirect Drying

The Indirect Dryer unit has been designed with the decades of experience of handling biomass feedstocks from the previous thermal treatment projects that the IQ Energy team worked on. The unit is an indirect air sealed drying machine that is a fully containerised module, all-in-one & connection-ready (Plug & Play) system. The indirect dryer unit slowly dries out the dewatered waste input continuously moving it across serpentine belts with heat applied indirectly (the heat not contacting the product). This process significantly reduces the weight and volume of the waste input and dries it to a valuable product for agriculture, industry or as an input to the thermal treatment process. The indirect dryer unit typically takes a dewatered waste input of~80-85% moisture content and dries this down to an easy to handle ~15-20% moisture content.

Indirect Dryer - Inputs & Outputs

IQ Energy Indirect Dryer Advantages

  • Modular and moveable. Ship in 40’ seacans. While also saving space with a compact footprint and low maintenance.

  • Exceptional accessibility and visibility into the machine and PLC control system (PLC) with user-friendly interface.

  • Modifiable – systems incorporate a tray design where trays can be added or removed depending on amount of material to be processed or temps of heat being used.

  • Highly automated, simple & effective design providing reliable, consistent plant operation

  • Efficient – 50% flue-gas recirculation providing for better utilisation of thermal energy.

  • Lower Capex – systems can be as much as 25-50% less expensive compared to other tech on the market.

  • Feedstocks: able to process a broad range of feedstocks from sticky and very wet materials to extremely fine and dusty materials, manures, MSW , food products, wood waste.

  • no mixing of flue-gas/heat medium with the materials being dried.

  • Non turbulent atmosphere inside body. No dust/particulate production – eliminating back end dust controls etc.

  • No wet ‘stack’ or plume.

  • Non-diluted vapour which can be condensed with energy reused in a Boundary ORC or recirculated by employing MVR fans and exchangers.

  • After cooling  - water can be collected and reused- not lost to the atmosphere – without need for costly heat exchangers etc.

  • No back-end machinery needed to deal with odour or emission to the atmosphere etc.

Why an Indirect Dryer Unit

Ability to Use a Wide Variety of Heat Sources

IQ Energy’s Indirect Dryer Unit can effectively use various heat sources for the drying process.

This can include:

  • Current onsite heat sources, like a cogeneration exhaust, flue gas or other onsite heat.

  • Diesel or gas burners.

  • IQ Energy’s Carbonisation Units.

IQ Energy Carbonisation Units

Heat Recovery

IQ Energy Indirect Dryer Unit Sizes

IDT1000

Smaller Indirect Dryer Unit

Processes ~8,000 wet tonnes per annum

1 t/hour of dewatered (80%mc) sludge.

IDT5000

Larger Indirect Dryer Unit

Processes ~40,000 wet tonnes/annum

4 t/hour of dewatered (~80%mc) sludge

Unit Example

Commercial Indirect Dryer

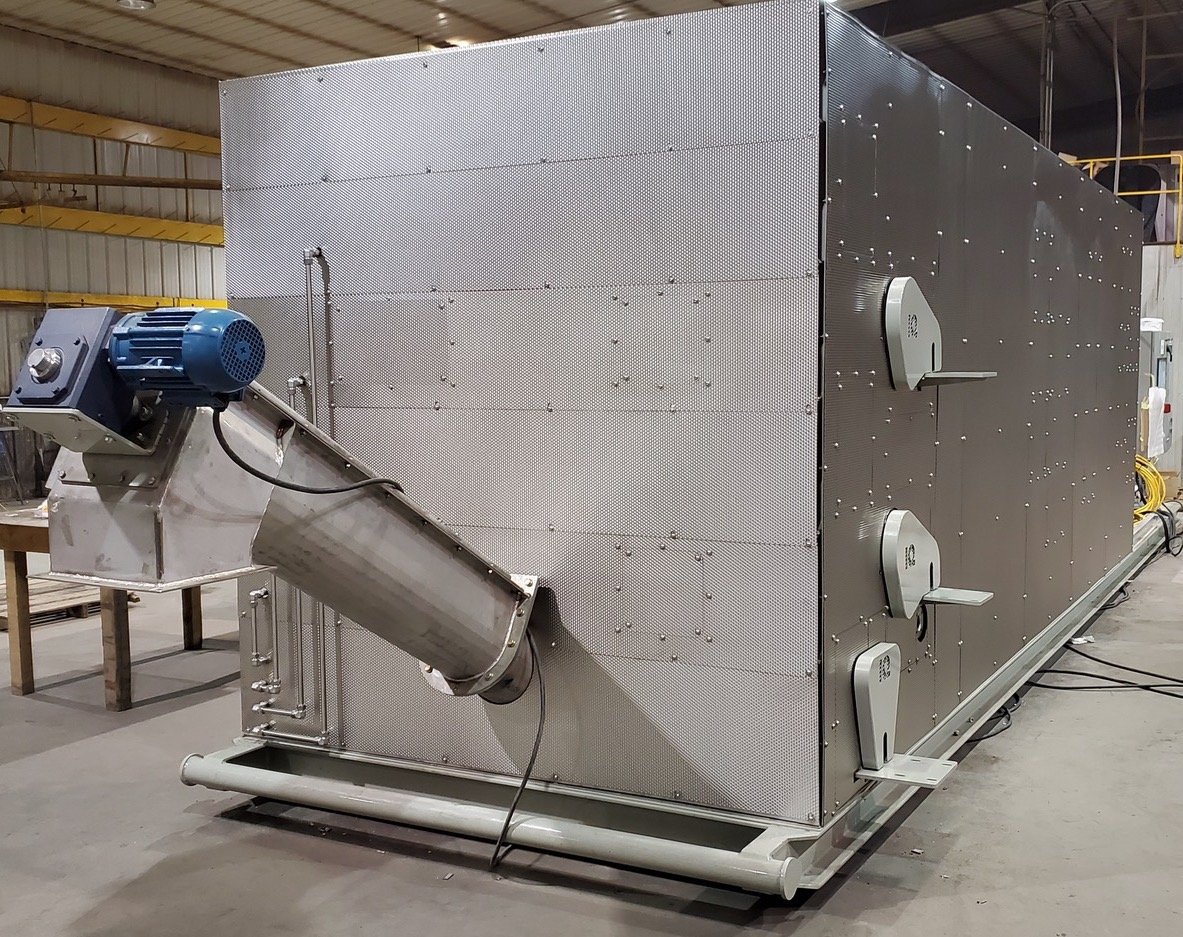

Indirect Dryer Unit (IDT1000) Demonstration Complete

Alberta, Canada

  • Successfully Demonstrated on Piggery Manure.

  • Moving to a commercial site in Alberta in 2024 where it will dry paper mill pulp sludge commercially into the IQ Energy Carbonisation Unit. It will also be used to demonstrate biosolids, anaerobic digestate, animal wastes, and other biomass and mixed feedstocks.

  • Will supply dried feedstock (15-20% moisture content) to the IQ Energy Carbonisation Unit.
